    Metal Industrial Computer Keyboard With 70 Keys Touchpad Keyboard

    Ask Lasest Price
    Brand Name : CNKHTECH
    Model Number : KH-K68-370TP
    Certification : CE/ROHS/FCC
    Price : Negotiation
    Payment Terms : T/T, Paypal, Western Union, MoneyGram, L/C
    Supply Ability : 3000pcs/month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

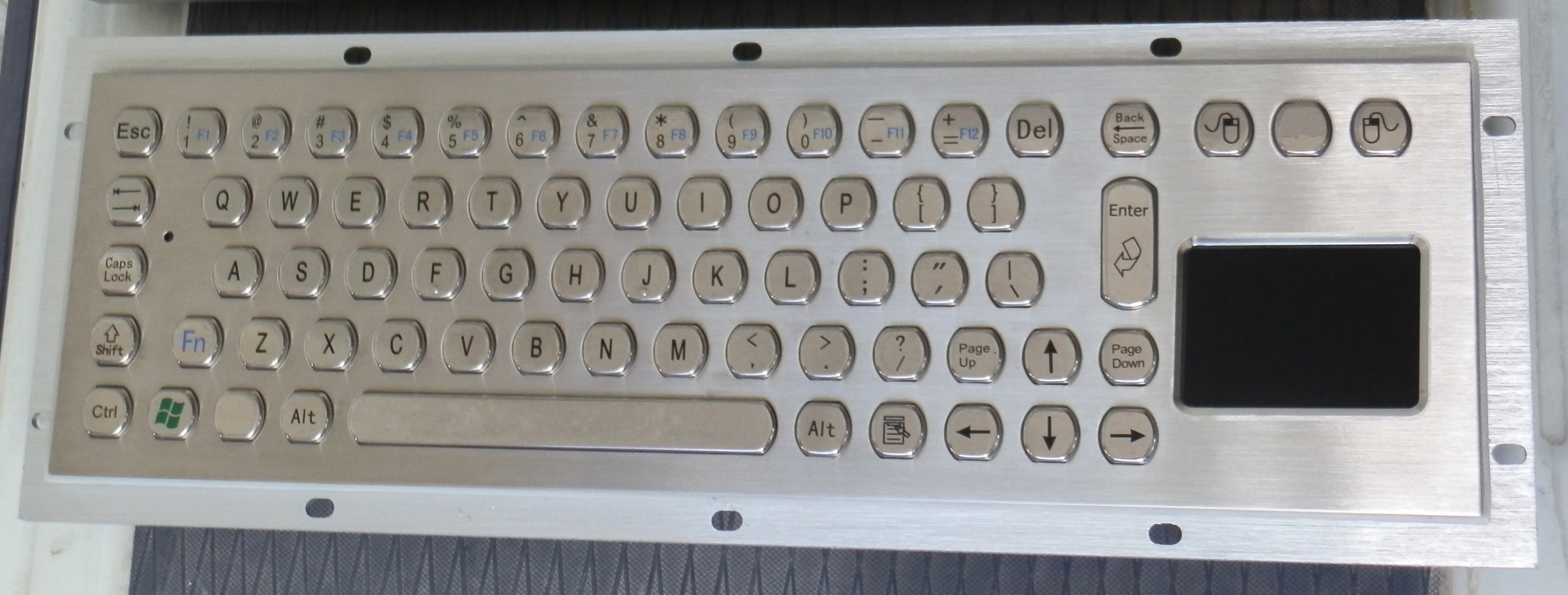

    Metal Industrial Computer Keyboard With 70 Keys Touchpad Keyboard


    Metal Industrial computer Keyboard with 70 Keys touchpad Keyboard


    Product Description


    • 70 Keys PC-Keyboard Standard Layout,use the High quality stainless steel material, and special water proof design, IP 65 protect class, it has good performance of water proof, dust proof and vandalism proof.


    Product Features:


    • IP65 rated Rugged stainless steel industrial kiosk standard PC-Keyboard.

    • Built in High precision pressure sensing technology of touchpad.

    • Electro Carbon-on-Gold PCB key switch technology.

    • Laser engraved characters for excellent durable.

    • Rear aluminum panel w/hole mounting solution

    • Interface PS/2, USB available,No driver needed, plug and play.

    • All international language lay-out are optional.


    Material :


    • Front panel & Keys: super quality SUS304 Brushed stainless steel

    • Back Plate:3.0mm thickness brushed & silver oxidized aluminum

    • Touchpad: 1.3 mm thickness Synaptics Touch Pad


    MAIN APPLICATION:

    This Industrial Keyboard with touchpad specially designed for public access entry system , kiosk self - service terminal , industrial control and instrumentation type applications.


    TECHNICAL SPECIFICATION


    ITEMSPECIFICATION
    MechanicalDimension:(W x H): 370 x110 mm (Front panel)
    Key & Front panel70 keys, SUS304 Brushed stainless steel material
    Touchpad thickness1.3 mm PCB thickness inclusive of mylar layer
    Validated Touchpad(W x H):62 x 46 mm;
    Touchpad lifespan> 10 Mio times
    Mounting RackTop stainless steel plate with mounting screw bolts
    Back Metal CoverRear side integrated electronics protected by a metal cover
    InterfacePS2 or USB are available
    ElectricalPower supply5V DC+ 10%,
    Work current4.0 mA (normal)
    X/Y position sensing resolution:1000 points/inch (40 points/mm)
    X/Y position reporting:Relative
    Tracking speed:Maximum 1,016 m/sec
    Protection level:IP65 (front panel)
    Static Release:15 KV (front panel)
    EMC Standard:EN55022(B)
    EnvironmentalOperating temperature:-10°C to +55°C
    Storage temperature:- 20°C to + 65°C
    Operating RH:10%-95%
    Atmospheric pressure:60-106Kpa
    ReliabilityMTBF>50000H
