Vandal resistant 70 PC Ruggedized Keyboard Panel Mount layout with touchpad

Ask Lasest Price
Brand Name :	CNKHTECH
Model Number :	KH-K68-395TP
Certification :	CE/ROHS/FCC
Price :	Negotiation
Payment Terms :	L/C, T/T, Western Union,Paypal
Supply Ability :	2000pcs/month
Delivery Time :	1-2 weeks

Add to Cart

Product Details
Company Profile

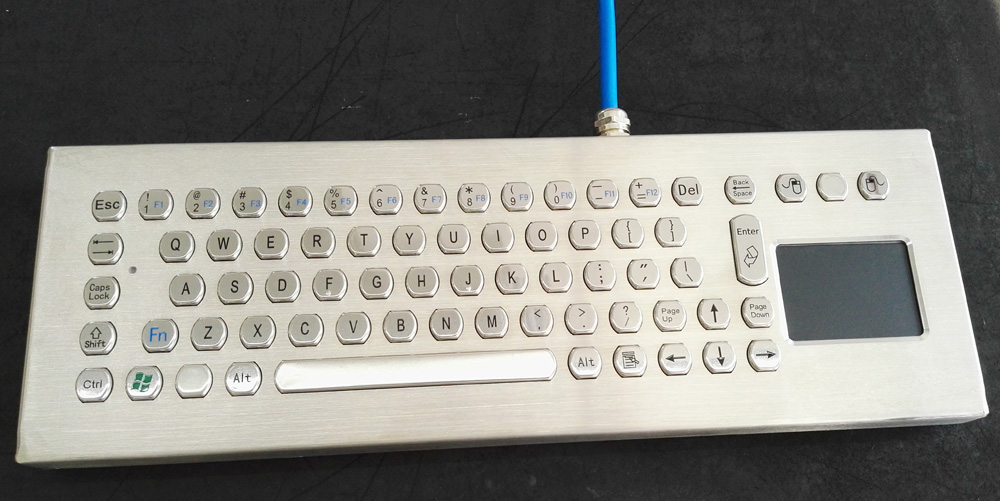

Vandal resistant 70 PC Ruggedized Keyboard Panel Mount layout with touchpad

Vandal resistant Keyboard, Stainless Steel Metal 70 PC-keyboard layout with touchpad

PRODUCT FEATURES -

> Super quality SUS304 Brushed stainless steel material of the stand alone keyboard

> Designed to operate in harsh environments

> 67 PC-keyboard layout with touchpad 395x135 mm front panel and additonal 3 mouse buttons

> Desktop style,no mounting needed,enjoy the convenience of mobility

> Protruding full travel(2.0mm)keys with etched graphics, excellent tactile feedback

> Be strictly according to IP65 regulation for water-proof,dust-proof,vandal-proof performance

> USB,PS/2,matrix output are optional

> Laser engraved characters for excellent durable

> Customized layout is available

APPLICATION -

The Vandal resistant Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas

TECHNICAL DATA -

> Mechnical Data

Dimension:	(W x H): 395 x135 mm (Front panel)
Key & Front panel	SUS304 Brushed stainless steel material
Touchpad thickness	1.3 mm PCB thickness inclusive of mylar layer
Switch Life	>1 million of per key
Touchpad lifespan	> 10 Mio times
Mounting Rack	Top stainless steel plate with mounting screw bolts
Back Metal Cover	Rear side integrated electronics protected by a metal cover
Operation System	WINDOWS98/ME/2000/2003/XP/Vista/Linux,Unix,MacOSX,iOS, Android

> Electrical Data

Supply Voltage	5.0V DC±5%
Current Rating	Appr. 30mA
EMC Standard	Council EMC directive 2004/108/EC
EN55022	2006+A2:2010
EN55024	1998+A1:2001+A2:2003
Lifespan	> 5 years

> Environmental Adaptability

Operating temperature	-20°C to +60°C
Storage temperature	-30°C to +70°C
Operating RH	20-95%
Atmospheric pressure	60-106Kpa.

> Reliability

CompliantStandard	RoHS , CE and FCC
Protection Level	IP65(front panel)
Vandal resistant	IK10
Key Lifespan	>1 million actuation
MTBF	>50000H
MTTR	<30min
