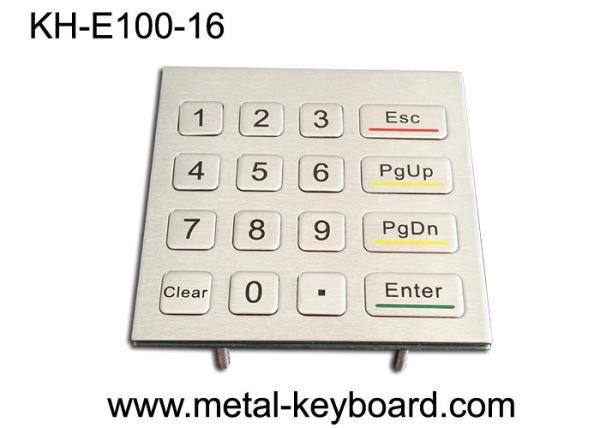

IP65 Number Anti Vandal Metal Keypad Kiosk Panel Mount Keypad Outdoor

    Buy cheap IP65 Number Anti Vandal Metal Keypad Kiosk Panel Mount Keypad Outdoor from wholesalers

    Buy cheap IP65 Number Anti Vandal Metal Keypad Kiosk Panel Mount Keypad Outdoor from wholesalers
    • Buy cheap IP65 Number Anti Vandal Metal Keypad Kiosk Panel Mount Keypad Outdoor from wholesalers

    IP65 Number Anti Vandal Metal Keypad Kiosk Panel Mount Keypad Outdoor

    Ask Lasest Price
    Brand Name : CNKHTECH
    Model Number : KH-E100-16
    Certification : CE/ROHS/FCC
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    IP65 Number Anti Vandal Metal Keypad Kiosk Panel Mount Keypad Outdoor


    Number Anti Vandal Metal Keypad / Kiosk Panel Mount Keypad Outdoor Use


    Product Description:


    Anti-vandal Metal Industrial Entry Keypad with 16 numeric keys, metal dome connect PCB key switch technology. Ideal for applications in the public areas and harshest conditions.


    Product Features:

    • 16keys design in 4 x 4 Layout.
    • Laser engraved characters for excellent durable.
    • Top panel w/bolt mounting solution
    • Matrix output, PS/2 or USB connector are available.
    • All international language lay-out are optional.
    • Dust-proof, water-proof,vandal-proof, anti-rusty,anti-corrosive
    • Customized free layout and keycode design

    TECHNICAL DATA -


    Item No.KH-E100-16
    CategoryMetal Keypad
    Front-Side MaterialStainless Steel
    Back-Plate MaterialStainless Steel
    Dimension(Front Panel)100x 100 mm
    InterfacePS/2, USB, Matrix output,Others


    Technical Information

    • Mechanical Data
    Key Travel0.45mm
    Switch Life> 1 million of per key
    Operation SystemWINDOWS98/ME/2000/2003/XP/WIN7/8/10, Vista/Linux,Unix,Mac OSX,iOS, Android
    • Electrical Data
    Supply Voltage5.0V DC ± 5%
    Current RatingAppr. 30mA
    EMC StandardCouncil EMC directive 2004/108/EC
    EN550222006+A2:2010
    EN550241998+A1:2001+A2:2003
    Lifespan> 5 years
    • Environmental Adaptability
    Operating temperature-20°C to +60°C
    Storage temperature-30°C to +70°C
    Operating RH20-95%
    Atmospheric pressure60-106Kpa.
    • Reliability
    Compliant StandardRoHS , CE and FCC
    Protection LevelIP65(front panel)
    Vandal resistantIK10
    Key Lifespan>10 million actuation
    MTBF>50000H
    MTTR

    <30min


    Applications:


    • Anti-vandal Metal Industrial Entry Keypad, A Rugged vandal resistant high reliability keyboard, made of Stainless Steel Material that is dust-proof, water-proof,vandal-proof, anti-rusty,anti-corrosive. Ideal for applications in the public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.
