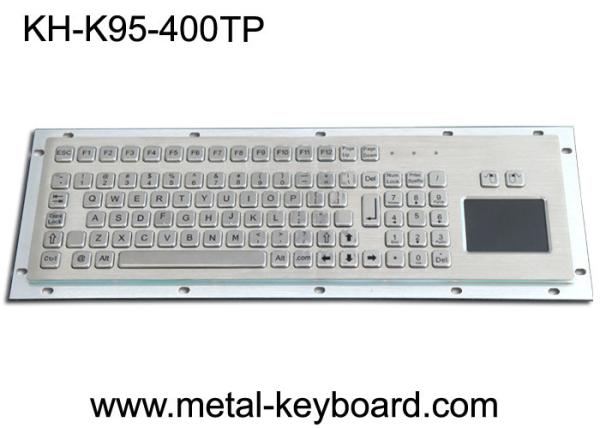

Water-proof Stainless Steel 95 Keys Metal Industrial Keyboard

Product Features:

1) 95 keys,making it a reality to include 12 function keys and number keypad,this is an enhancement that other standard keyboards cannot have,moreover,nearly all keys that are commonly seen can be programmed on this keyboard

2) One trackball is built in the middle section between the main keys and numeric keys

3) Rugged construction,all parts that are exposed to outside are built from 304 stainless steel that is anti-rusty,anti-corrosive,additionally all keys are designed and built against rough handling and deliberate destruction

4) Designed and sealed to make it dust-proof and liquid-proof, meet NEMA4/IP65 rating when properly mounted,water or dust cannot go inside the electrical part thus cannot impact the functionality of the keyboard

5) PS/2 or USB interface, plug and play,no extra software is needed

6) Layout customizable for different language versions as per customer's requirement

Applications:

This Water-proof stainless steel 95 keys metal industrial keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.

Material:

- Front panel & Keys: Brushed SUS304 stainless steel

- Back panel: Aluminum alloy

- Key cap: Protruding full travel key(2.0mm) with etched graphics

- Mouse: touchpad mouse

Electrical Data

- Power supply voltage: DC 5 V ± 5%

- Current rating: 30mA

- Touchpad

- Interface: USB or PS2

- EMC compliance:EN55022:2006+A1:2007;EN55024:1998+A2:2003

- Safety: EN 60950, CE

Environmental Characteristics

- Operating temperature: -20º C to + 60º C

- Storage temperature: - 40º C to + 80º C

- Saline mist: 96 hours, IEC 60512-6

- Damp heat test at + 40º C: 21 days, IEC 60512-6

- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key:150±15g

- Key travel: 2.0mm

- Lifetime (cycles): Min 2, 000, 000 actuations

- Sealing protection: IP65/NEMA4X from the front

- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4

Operation system

- It is compatible to All windows, Linux, Unix, Mac OSX

Reliability

- MTBF >50000H

- MTTR <30min
