70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad

    Buy cheap 70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad from wholesalers

    Buy cheap 70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad from wholesalers
    • Buy cheap 70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad from wholesalers

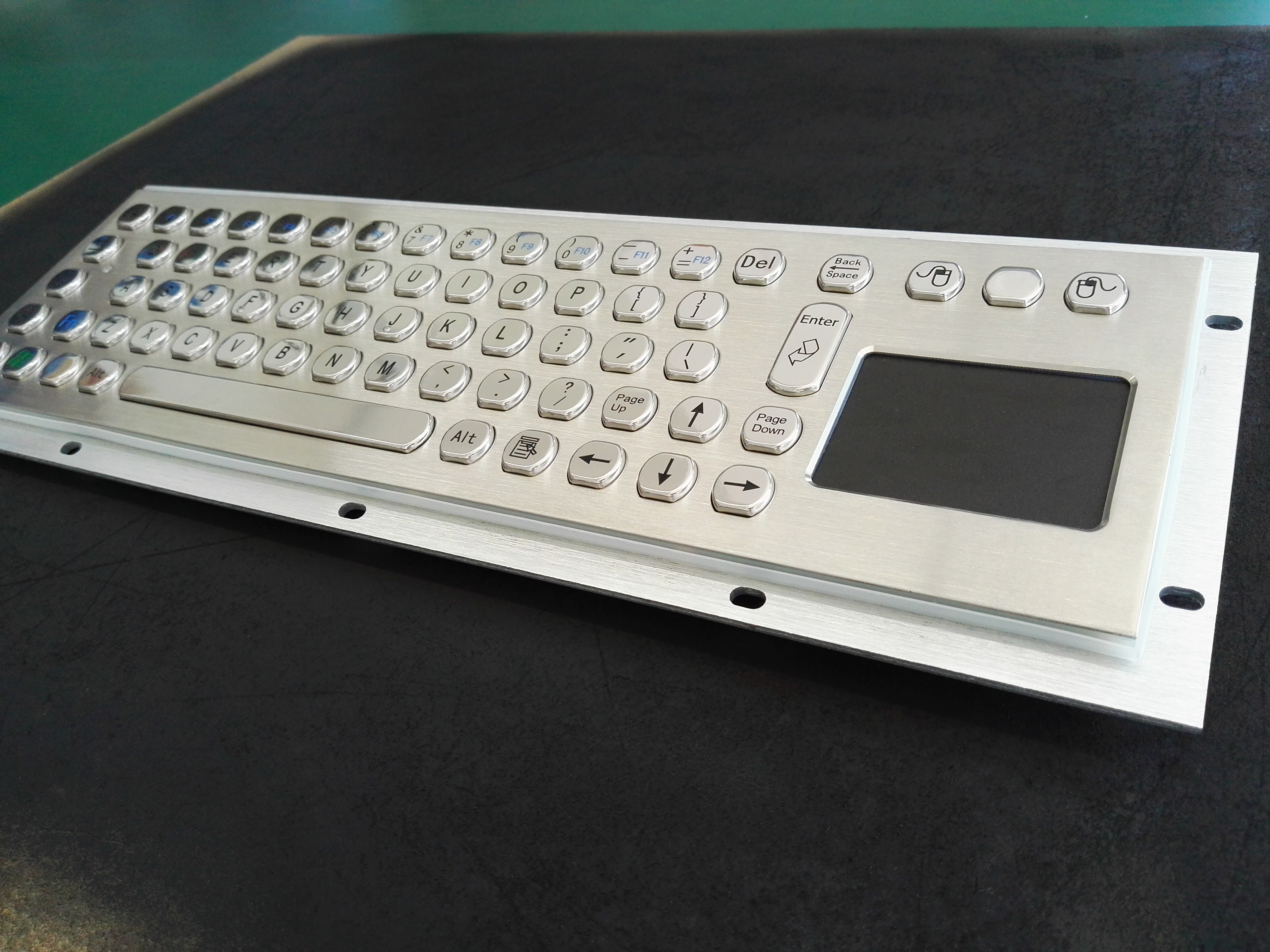

    70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad

    Ask Lasest Price
    Brand Name : CNKHTECH
    Model Number : KH-K68-370TP
    Certification : CE/ROHS/FCC
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 2000pcs/month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    70 Keys Industrial Computer Keyboard SUS304 Brushed With Touchpad


    Rugged 70 Keys Industrial Kiosk Keyboard with Touchpad Keyboard

    PRODUCT FEATURES -


    > 67 PC-keyboard layout with touchpad, front panel and additonal 3 mouse buttons

    >
    Protruding full travel keys,key travel:2.0mm,this provides a pretty tactile feel for users

    > Be strictly according to IP65 regulation for water-proof,dust-proof,vandal-proof performance

    >
    PS/2 or USB interface, plug and play,no extra software is needed

    > Friendly layout and any language is available and it’s free of additional charge

    Material:


    > Front panel & Keys: Brushed 304 stainless steel

    > Back panel: Aluminum alloy

    > Key cap: Protruding full travel key(2.0mm) with etched graphics

    > Trackball: Stainless steel(Dia: 25mm)



    APPLICATION -

    The Vandal resistant Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATM/CDM), Internet public phones etc.


    TECHNICAL DATA -

    > Mechnical Data



    Dimension:

    (W x H): 370 x122 mm (Front panel)

    Key & Front panel

    SUS304 Brushed stainless steel material

    Touchpad thickness

    1.3 mm PCB thickness inclusive of mylar layer

    Switch Life

    >1 million of per key

    Touchpad lifespan

    > 10 Mio times

    Mounting Rack

    Rear aluminum panel w/hole mounting solution


    Back Metal Cover

    Rear side integrated electronics protected by a metal cover
    Operation SystemALL WINDOWS/Vista/Linux,Unix,MacOSX,iOS, Android



    > Electrical Data


    Supply Voltage


    5.0V DC±5%


    Current Rating


    Appr. 30mA


    EMC Standard


    Council EMC directive 2004/108/EC


    EN55022


    2006+A2:2010


    EN55024


    1998+A1:2001+A2:2003


    Lifespan


    > 5 years



    > Environmental Adaptability


    Operating temperature


    -20°C to +60°C


    Storage temperature


    -30°C to +70°C


    Operating RH


    20-95%


    Atmospheric pressure


    60-106Kpa.


    > Reliability


    CompliantStandard


    RoHS , CE and FCC


    Protection Level


    IP65(front panel)


    Vandal resistant


    IK10


    Key Lifespan


    >1 million actuation


    MTBF


    >50000H


    MTTR


    <30min
