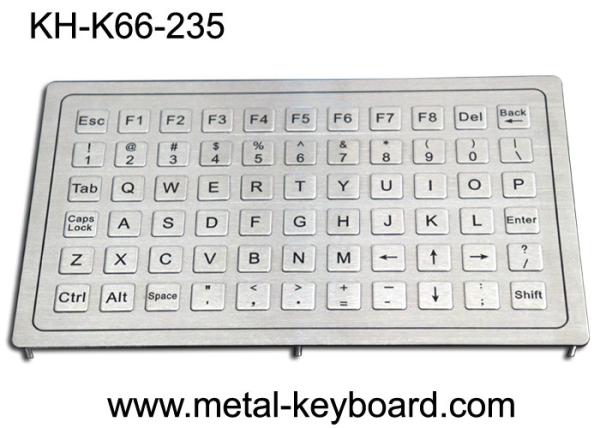

Rugged stainless steel water-proof panel mount 66keys metal keyboard

KH-K66-235

PRODUCT FEATURES -

> Super quality SUS304 Brushed stainless steel material

> 66 Flat Keys PC-keyboard standard layout

> Water-proof, dust-proof, vandal-resistant proformance

> USB,PS/2,matrix output are optional

> Top panel w/bolt mounting solution

> Rugged construction to ensure high vandal resistance

> Customized layout is available

APPLICATION -

The Rugged stainless steel water-proof panel mount 66keys metal keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.

Material-

- Front panel & Keys: Brushed 304 stainless steel

- Back panel: stainless steel

- Key cap: Flat key(0.45mm) with etched graphics

Electrical Data

- Power supply voltage: DC 5 V ± 5%

- Current rating: 20mA

- Trackball resolution:800dpi

- Interface: USB or PS2

- EMC compliance:EN55022:2006+A1:2007;EN55024:1998+A2:2003

- Safety: EN 60950, CE

Environmental Characteristics

- Operating temperature: -20º C to + 60º C

- Storage temperature: - 40º C to + 80º C

- Saline mist: 96 hours, IEC 60512-6

- Damp heat test at + 40º C: 21 days, IEC 60512-6

- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Actuation force for key:150±15g

- Key travel: 2.0mm

- Lifetime (cycles): Min 2, 000, 000 actuations

- Sealing protection: IP65/NEMA4X from the front

- Vibration resistance: 5 Hz -200 Hz, IEC 60512-4

- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4

Operation system

- It is compatible to All windows, Linux, Unix, Mac OSX

Reliability

- MTBF >50000H

- MTTR <30min
