    Panel Mount Industrial Pointing Device Black Metal Trackball IP65 Smooth Operation

    Ask Lasest Price
    Brand Name : CNKHTECH
    Model Number : KH-M33-100
    Certification : CE/ROHS/FCC
    Price : Negotiation
    Payment Terms : T/T, Paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

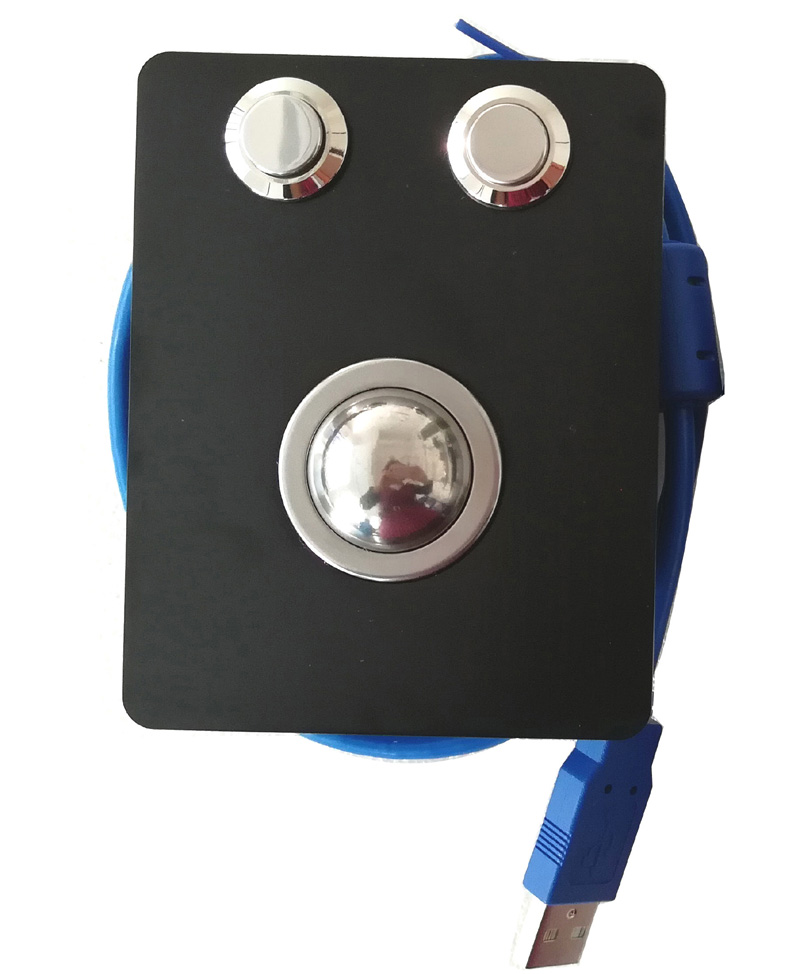

    Panel Mount Industrial Pointing Device Black Metal Trackball IP65 Smooth Operation

    25mm Panel-mount Black Metal Trackball For Industrial Pointing Device


    Product Description


    • All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.

    • Laser Encoders provide high resolution more than 1200DPI, fast and reliable positioning data.

    • 25mm diameter Stainless steel ball for smooth, quick and durable operation and precise cursor positioning.

    • Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.

    • no metal bearings inside, operation is very smooth, and easy without any noise.

    • can be mounted horizontally, and vertically.

    • PS/2 or USB connector is available.

    • Customized layout is available.


    Applications:


    • The Industrial Trackball Device is used for existing mouse driver and mouse software Interfaces for most workstations and computers, applications in the medical or marine industrial areas, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.


    Technical Specifications


    ITEMSPECIFICATION
    MechanicalKey2keys, quality brushed stainless steel
    Key top styleSealed round stainless steel buttons with tactile feeling
    Front Plate

    Electroplated Black stainless steel

    Key Travel1.00 mm
    Ball diameter25mm
    Key switch lifespanmore than 10 Mio actuations
    Track ball lifespan> 10 Mio revolutions
    Mounting Racktop stainless steel plate with mounting screw bolts
    Dimension

    Dimensions with 38mm track ball,

    Front plate (W x H): 100mm x 78mm

    InterfacePS/2 or USB interface, plug and play,no extra software is needed
    ElectricalPower supply5V DC+ 10%, mouse interface
    Protection levelIP65 dynamic (front panel), NEMA3, IK10
    EMC StandardEN55022(B)
    Power consuming≤1.00W(dynamic)
    ≤0.2W(static)
    Contact Materialsealed stainless steel buttons
    EnvironmentalOperating temperature-20ºC~+ 60º C
    Storage temperature- 30ºC~+ 70ºC
    Operating RH30~90%
    Atmospheric pressure60~106Kpa.
    ReliableCertificatesRoHS compliant, CE and FCC certified. ESD
    MTBF>50000H
    MTTR< 30min
    OS

    It is compatible to All windows, Linux, Unix, Mac OSX

    Packing Details2pcS/EPE/inner box, 30boxes/ctn.
