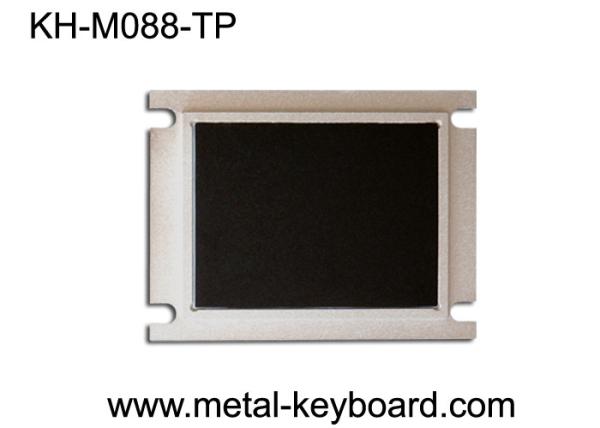

Metal Industrial Pointing Touchpad Mouse with Rear Panel mount

Product Description

• High precision pressure sensing technology of touchpad,

• PS2 or USB are available, No driver needed, plug and play.

• Rear aluminum panel w/hole mounting solution

• Customized layout is available

TECHNICAL SPECIFICATION

Mechanical	Touchpad thickness	1.3 mm PCB thickness inclusive of mylar layer
	Validated Touchpad	(W x H):62 x 46 mm;
	Touchpad lifespan	> 10 Mio times
Interface	PS2 or USB are available
Electrical	Power supply	5V DC+ 10%,
	Work current	4.0 mA (normal)
	X/Y position sensing resolution:	1000 points/inch (40 points/mm)
	X/Y position reporting:	Relative
	Tracking speed:	Maximum 1,016 m/sec
	Protection level:	IP65 (front panel)
	Static Release:	15 KV (front panel)
	EMC Standard:	EN55022(B)
Environmental	Operating temperature:	-10°C to +55°C
	Storage temperature:	- 20°C to + 65°C
	Operating RH:	10%-95%
	Atmospheric pressure:	60-106Kpa
Reliability	MTBF	>50000H
	MTTR	< 30min
	Touchpad Lifespan	>10 million actuations
OS	OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Win7,Unix, Mac OS9 / OSX

Why Choose us ?

1. Integrated Solutions Provider and Service Provider of industrial keyboard/keypad/mouse

2. Experienced Technical Staffs and patient, professional sales team, fast response your inquiry.

3. High quality assurance with competitive price.

4. Flexibility in customization and dimension of products.

5. OEM and ODM available

6. Best after sales service to ensure satisfaction from customers.

Quality Assurance

1.100% quality inspection on finished product to prevent defective or sub-standard product from being shipped out.

2. All products compliant with RoHS,CE,FCC and other regulations.

3. Strict assembly, reliability and functional tests to ensure the total and effective quality control.

4. Efficient assembly and packing lines

5.1 year warranty since the production date. Please contact us whenever issues occur and we we’d try our best to assist.
