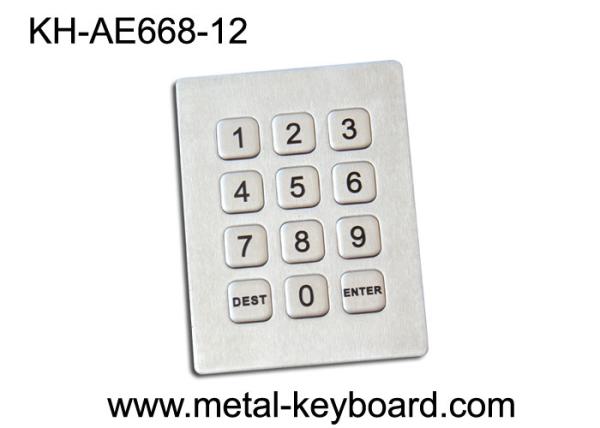

    3x4 Matrix 12 Keys Kiosk Keypad / Rugged Stainless Steel Access Keypad

    Ask Lasest Price
    Brand Name : CNKHTECH
    Model Number : KH-AE668-12H
    Certification : CE/ROHS/FCC
    Price : Negotiation
    Payment Terms : T/T, Paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    3x4 Matrix 12 Keys Kiosk Keypad / Rugged Stainless Steel Access Keypad


    Rugged Stainless Steel Access Kiosk Keypad with 12 Keys In 3x4 Matrix

    Product Features:

    • 12 Keys Metal Keypad, by 3 x 4 Layout

    • Laser engraved characters for excellent durable.

    • Matrix output with 7 Pin power terminals

    • Also PS2 or USB connector are available

    • IP65 water-proof,dust-proof,vandal-proof

    • Customized layout is available


    Product Description


    • This Metal Keypad are specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, IP 65 compliant, it has good performance of water proof, dust proof and vandalism proof.


    Technical Specifications


    MaterialEnvironmental Characteristics

    ELECTRICAL DATA


    • Vandal proof stainless steel design, meet the highest demands with regard to design, functionality, longevity and high protection level.

    • Operating temperature: -20°C to + 60°C

    • Storage temperature: - 40°C to + 80°C

    • Operating RH: 20-95%

    • Atmospheric pressure: 60-106Kpa.

    • Supply Voltage:5.0V DC±5%

    • Current Rating: appr. 30mA

    • EMC Standard: It is compliance with the council EMC directive 2004/108/EC

    • EN55022: 2006+A2:2010

    • EN55024: 1998+A1:2001+A2:2003


    Operation systemReliabilityMechanical Data
    • It is compatible to All windows, Linux, Unix, Mac OSX

    • MTBF >5,0000H

    • MTTR <30min


    • Key switch lifespan:more than 10 Mio actuations

    • Lifespan > 5 years


    Main Application:


    • Ideal for applications in the public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, industrial control and instrumentation type, etc.
