    IP65 Industrial Metal Numeric Keypad , Anti - vandal num keypad with long life

    Ask Lasest Price
    Brand Name : CNKHTECH
    Model Number : KH-AE668-12H
    Certification : CE/ROHS/FCC
    Price : Negotiation
    Payment Terms : T/T, Paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

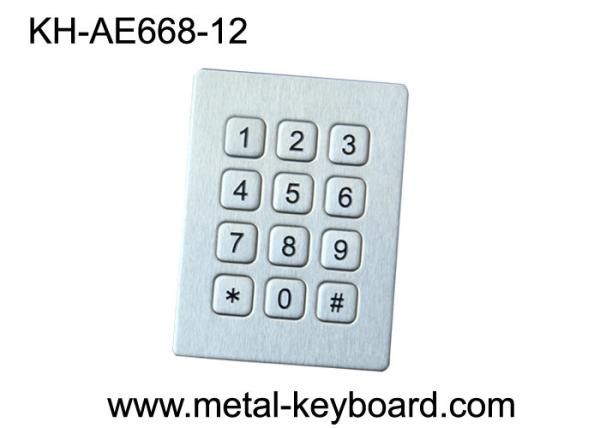

    IP65 Industrial Metal Numeric Keypad , Anti - vandal num keypad with long life


    IP65 Industrial Metal Numeric Keypad with Anti-vandal and long life

    Product Features:

    • 12 Keys Numeric Keypad, by 3 x 4 Layout

    • Laser engraved characters for excellent durable.

    • Matrix output with 7 Pin power terminals

    • Also PS2 or USB connector are available

    • IP65 water-proof,dust-proof,vandal-proof

    • Customized layout is available


    Product Description


    • This Numeric Keypad are specially designed for harsh environment, use the brushed stainless steel material, and special water proof design, IP 65 compliant, it has good performance of water proof, dust proof and vandalism proof.


    Technical Specifications


    MaterialEnvironmental Characteristics

    ELECTRICAL DATA


    • Stainless steel panel and keys guard willful destruction, vandal-proof, against corrosion,

    • Operating temperature: -20°C to + 60°C

    • Storage temperature: - 40°C to + 80°C

    • Operating RH: 20-95%

    • Atmospheric pressure: 60-106Kpa.

    • Supply Voltage:5.0V DC±5%

    • Current Rating: appr. 30mA

    • EMC Standard: It is compliance with the council EMC directive 2004/108/EC

    • EN55022: 2006+A2:2010

    • EN55024: 1998+A1:2001+A2:2003


    Operation systemReliabilityMechanical Data
    • It is compatible to All windows, Linux, Unix, Mac OSX

    • MTBF >5,0000H

    • MTTR <30min


    • Key switch lifespan:more than 10 Mio actuations

    • Lifespan > 5 years


    Main Application:


    • Ideal for applications in the public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, industrial control and instrumentation type, etc.


    IP65 Industrial Metal Numeric Keypad , Anti - vandal num keypad with long life
