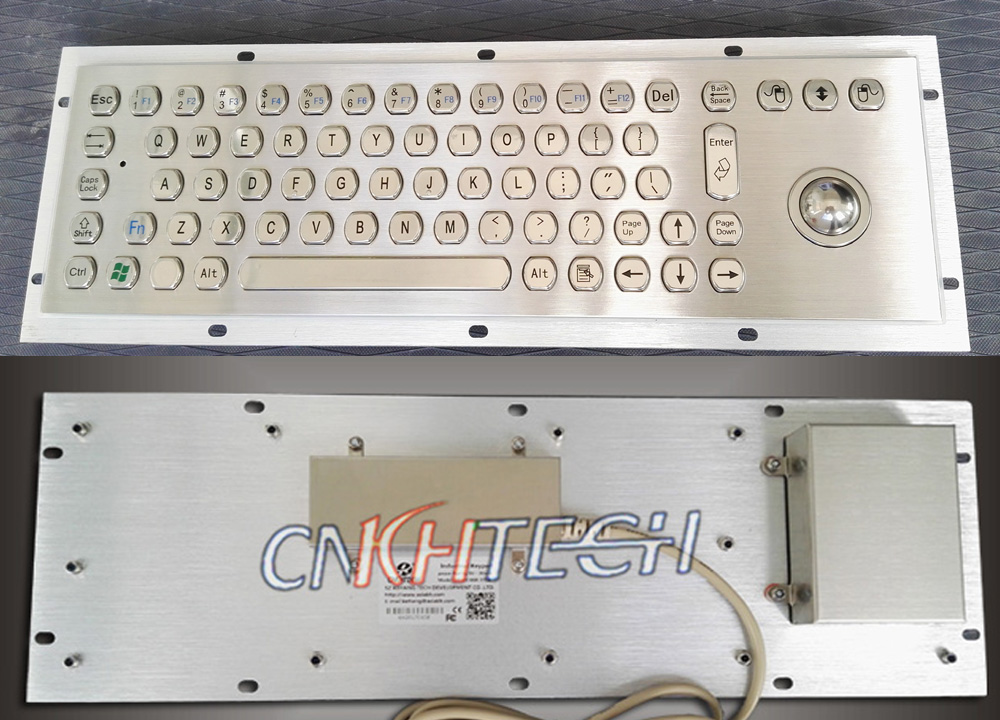

IP65 Waterproof Rugged Industrial Keyboard with Trackball 70Keys
This Rugged Industrial Keyboard is specially designed for harsh
environment, use the brushed stainless steel material, and special
water proof design, IP 65 compliant, it has good performance of
water proof, dust proof and vandalism proof.
Product Features:
• 70 Keys PC-Keyboard Standard Layout
• Built in 25mm laser trackball and 3 mouse buttons
• IP65 dust-proof,water-proof,Vandal-proof Performance.
• All international language lay-out are optional.
Technical Specifications
Material
| Front panel & Keys: | SUS304 Stainless steel |
| Trackball: | Stainless steel(Dia: 25mm) |
ELECTRICAL DATA
| Interface: | USB or PS2 |
| Supply Voltage | 5.0V DC±5% |
| Current Rating: | appr. 30mA |
| EMC Standard: | It is compliance with the council EMC directive 2004/108/EC |
| EN55022: | 2006+A2:2010 |
| EN55024: | 1998+A1:2001+A2:2003 |
Environmental Characteristics
| Operating temperature: | -20 C to + 60 C |
| Storage temperature: | - 40 C to + 80 C |
| Operating RH: | 20-95% |
| Atmospheric pressure: | 60-106Kpa. |
| Mechanical Data | Key switch lifespan | more than 10 Mio actuations |
| Trackball lifespan | > 10 Mio revolutions |
| Lifespan | > 5 years |
| Reliability | MTBF | >5,0000H |
| MTTR | <30min |
| Operation system | It is compatible to All windows, Linux, Unix, Mac OSX |
APPLICATION
- This keyboard is mainly targeted for use for unsupervised or
semi-supervised positions of varied access applications, internet
terminals and information kiosks at universities, shopping malls,
hotels, airports, railway stations and other public areas, ticket
vending machines, gas stations, cash machines (ATMs), Internet
public phones etc.
Why Choose us?
1, ISO9001:2008 certification
2, Audited supplier by SGS,TUV Rheinland and BUREAU VERITAS
3, Reasonable price and fast response
4, Over 10 years of experience in rugged input device and
touchscreen kiosk
5, OEM and ODM capability
6, Flexibility in customization and size of order
7, Trusted suppliers of many world-class famous brands in the
industry
Quality Assurance
1.100% quality inspection on finished product to prevent defective
or sub-standard product from being shipped out.
2. All products compliant with RoHS,CE,FCC and other regulations.
3. Strict assembly, reliability and functional tests to ensure the
total and effective quality control.
4. Efficient assembly and packing lines
5.1 year warranty since the production date. Please contact us
whenever issues occur and we we’d try our best to assist.
