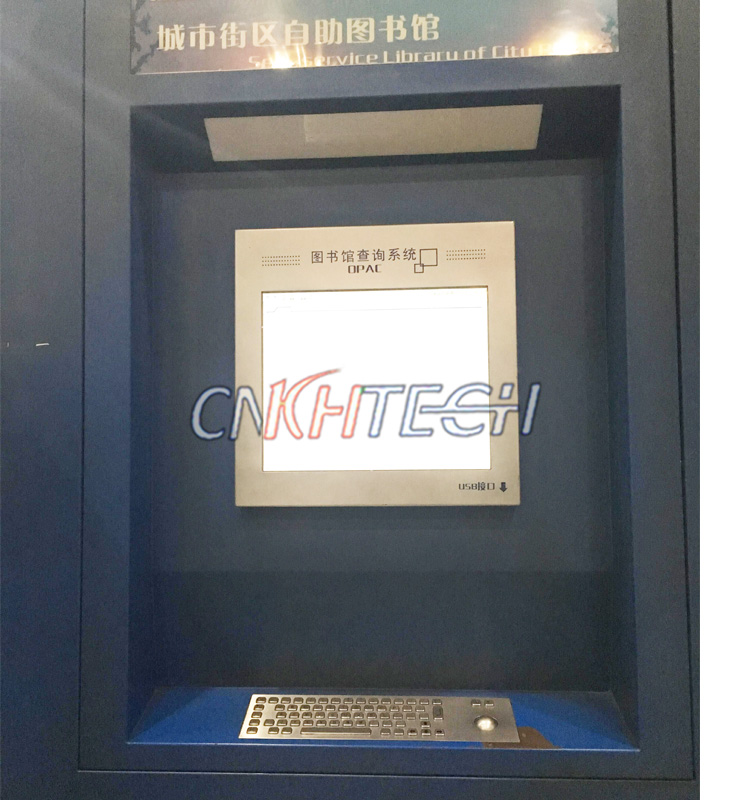

USB Self - Service Terminal Metal Computer Keyboard with Trackball

KH-K68-370A

SIZE: 370x110 mm (Front panel)

Product Description

• Rugged stainless steel panel mount keyboard, 67 Keys PC-Keyboard Standard Layout with 3 buttons for functions direction of trackball, IP65 dust-proof,water-proof,Vandal-proof Performance, full-travel(2.0mm) keys and integrated laser trackball

Product Features:

• 70 Keys PC-Keyboard Standard Layout
• Built in 25mm laser trackball and 3 mouse buttons
• Electro Carbon-on-Gold PCB key switch technology
• Laser engraved characters for excellent durable.
• Rear aluminum panel w/hole mounting solution
• Interface PS/2, USB available
• All international language lay-out are optional.

Technical Information

MECHANICAL DATA

• Key top style: Protuberant rectangular keys, laser engraved & etched graphics & raised braille on keys are available

• Stroke travel: 2.0mm

• Switch life: more than 1 million of per key

• It is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX

• Customized layout is available

• N.W.:1.6 KGs

ELECTRICAL DATA

• Supply Voltage:5.0V DC±5%

• Current Rating: appr. 30mA

• EMC Standard: It is compliance with the council EMC directive 2004/108/EC

• EN55022: 2006+A2:2010

• EN55024: 1998+A1:2001+A2:2003

• Lifespan > 5 years

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20°C to +60°C

• Storage temperature: -30°C to +70°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

RELIABILITY

• Compliant RoHS , CE and FCC

• Protection Level: IP65(front panel)

• Vandal resistant: IK10

• Key Lifespan >10 million actuations

• MTBF >50,000H

• MTTR <30min

SZ Kehang Technology Development Co., Ltd. is a professional and leading manufacturer with ISO9001, engaged in the R&D, manufacture, marketing and after-sale service of a wide range of innovative and rugged input devices for financial, manufacturing, medical care and other automation industries.

OUR PRODUCTS

1. Industrial metal keyboards
2. Customized industrial keyboards
3. Access control keypads
4. Industrial trackballs
5. Rugged touchpads

They are widely used in many industries, such as banking, finance, telecommunication, manufacturing, public safety, education, medical care, government, military and other environments. All of our products are compliance with CE, RoHS, FCC and also with IP65 protection level. On 2017, we have get ISO9001:2015 certificate.

We will provide the suitable solutions and competitive & high quality items for customers.

RELIABLE SUPPLIER

As a professional industrial keyboard/keypad/mouse manufacturer , we stick to focusing on supplying a best and good solution and product for our customers.

All our teams: Management, R&D team , Sales & Marketing team, Production line, QC line, Financial team, Logistic Center, and others are trying their best to support our customers.

ANY WHERE, ANY TIME, JUST CONTACT US

Wherever we are, we’re here to strive for providing the excellent service in appreciation of your support.
