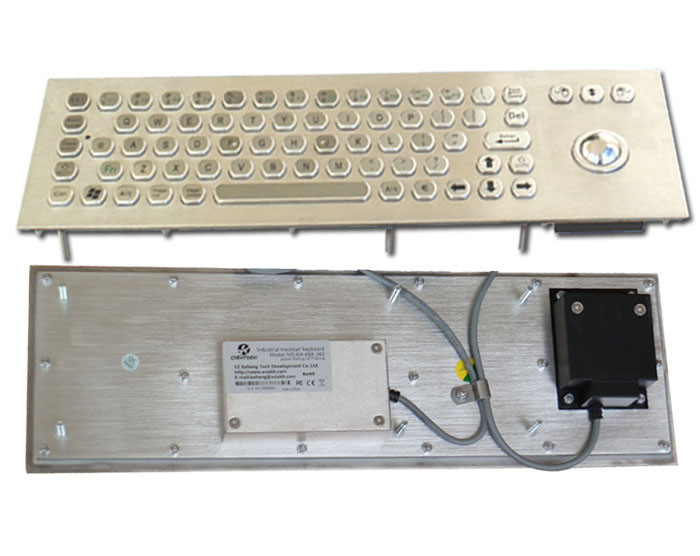

Kiosk Self - Service Terminal Metallic Industrial Keyboard with Trackball , USB

Model NO:KH-K68-382

Dimension: 382 x122 mm (Front panel)

Product Description:

USB Kiosk Self - Service Terminal Keyboard, 70 Keys PC-Keyboard Standard Layout, IP65 dust-proof,water-proof,Vandal-proof Performance, full-travel(2.0mm) keys and integrated laser trackball

Product Features:

• 70 Keys Kiosk Self - Service Terminal Keyboard

• Built in 25mm laser trackball and 3 mouse buttons

• Electro Carbon-on-Gold PCB key switch technology

• Laser engraved characters for excellent durable.

• Rear aluminum panel w/hole mounting solution

• Interface PS/2, USB available,No driver needed, plug and play.

• All international language lay-out are optional.

Material :

• Front panel & Keys: super quality SUS304 Brushed stainless steel

• Back Plate: SUS304 Brushed stainless steel

• Trackball: Stainless steel trackball (Dia: 25mm)

MAIN APPLICATION:

• This Kiosk Self - Service Terminal Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.

MECHANICAL DATA

• Key top style: Protuberant rectangular keys, laser engraved & etched graphics & raised braille on keys are available

• Stroke travel: 2.0mm

• Switch life: more than 10 million of per key

• It is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX

• Customized layout is available

• N.W.:1.8 KGs

ELECTRICAL DATA

• Supply Voltage:5.0V DC±5%

• Current Rating: appr. 30mA

• EMC Standard: It is compliance with the council EMC directive 2004/108/EC

• EN55022: 2006+A2:2010

• EN55024: 1998+A1:2001+A2:2003

• Lifespan > 5 years

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20°C to +60°C

• Storage temperature: -30°C to +70°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

RELIABILITY

• Compliant RoHS , CE and FCC

• Protection Level: IP65(front panel)

• Vandal resistant: IK10

• Key Lifespan >10 million actuations

• MTBF >5,0000H

• MTTR <30min
