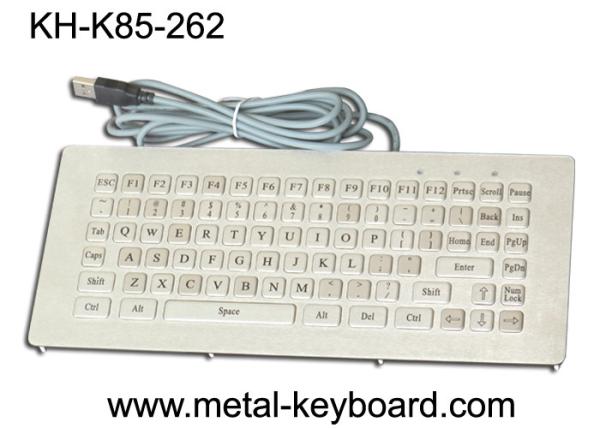

Metallic stainless steel ruggedized keyboard industrial Vandal Resistant

Model NO:KH-K85-262TP

Dimension: 282 x122 mm (Front panel)

Product Description

• 85 Keys Industrial Computer Metallic Vandal Resistant Keyboard, use the High quality stainless steel material, and special water proof design, IP 65 protect class, it has good performance of water proof, dust proof and vandalism proof.

Product Features:

• IP65 Industrial Metallic Vandal Resistant Keyboard

• Electro Carbon-on-Gold PCB key switch technology.

• Laser engraved characters for excellent durable.

• Rear aluminum panel w/hole mounting solution

• Interface PS/2, USB available,No driver needed, plug and play.

• All international language lay-out are optional.

Material :

• Front panel & Keys: super quality SUS304 Brushed stainless steel

• Back Plate:3.0mm thickness brushed & silver oxidized aluminum

MAIN APPLICATION:

• This Industrial Computer Metallic Vandal Resistant Keyboard is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.

MECHANICAL DATA

• Key top style: Protuberant rectangular keys, laser engraved & etched graphics & raised braille on keys are available

• Stroke travel: 0.5mm

• Switch life: more than 1 million of per key

• It is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX

• Customized layout is available

• N.W.:1.8 KGs

ELECTRICAL DATA

• Supply Voltage:5.0V DC±5%

• Current Rating: appr. 30mA

• EMC Standard: It is compliance with the council EMC directive 2004/108/EC

• EN55022: 2006+A2:2010

• EN55024: 1998+A1:2001+A2:2003

• Lifespan > 5 years

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20°C to +60°C

• Storage temperature: -30°C to +70°C

• Operating RH: 20-95%

• Atmospheric pressure: 60-106Kpa.

RELIABILITY

• Compliant RoHS , CE and FCC

• Protection Level: IP65(front panel)

• Vandal resistant: IK10

• Key Lifespan >10 million actuations

• MTBF >5,0000H

• MTTR <30min
