Stainless Steel Waterproof Touchpad Mouse 2 Metal Buttons , High Sensitivity

SZ Kehang Technology Development Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Stainless Steel Waterproof Touchpad Mouse 2 Metal Buttons , High Sensitivity from wholesalers

    Buy cheap Stainless Steel Waterproof Touchpad Mouse 2 Metal Buttons , High Sensitivity from wholesalers
    • Buy cheap Stainless Steel Waterproof Touchpad Mouse 2 Metal Buttons , High Sensitivity from wholesalers
    • Buy cheap Stainless Steel Waterproof Touchpad Mouse 2 Metal Buttons , High Sensitivity from wholesalers

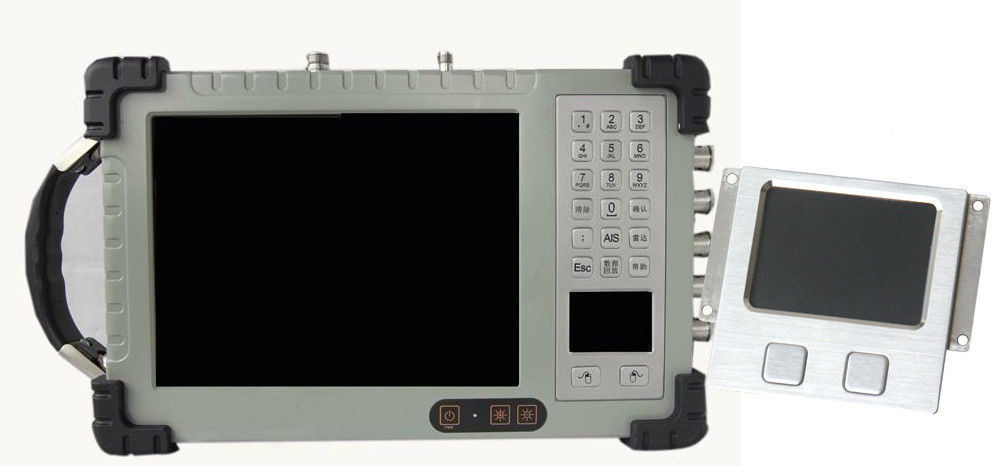

    Stainless Steel Waterproof Touchpad Mouse 2 Metal Buttons , High Sensitivity

    Ask Lasest Price
    Brand Name : CNKHTECH
    Model Number : KH-MA80-TP
    Certification : CE/ROHS/FCC
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union,Paypal
    Supply Ability : 5000pcs/month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    Stainless Steel Waterproof Touchpad Mouse 2 Metal Buttons , High Sensitivity


    Stainless Steel Waterproof Touchpad Mouse 2 Metal Buttons , High Sensitivity

    KH-MA80-TP


    Dimension: 80 x80mm(Front Panel)

    PRODUCT DESCRIPTIONS / FEATURES -

    > Designed to operate in harsh environments, making it ideal for application in public place and other harsh environment of High-sensitivity touchpad;

    > Metal frame with 2 mouse buttons designed for right & left function keys

    > PS2 or USB connectors are optional, No driver needed, plug and play.

    > Dust-proof and liquid-proof, IP65 compliance,

    > Panel-mount Version

    > Lower power consumption

    > Customized design, including the dimensions and buttons could be acceptable.


    APPLICATION -

    Mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.


    TECHNICAL DATA -

    > Mechnical Data


    Dimensions


    80 x80mm(Front Panel)


    Validated Touchpad


    62 x 46 mm(W x H)


    Touchpad lifespan


    >10 million times


    Operation System


    WINDOWS98/ME/2000/2003/XP/Vista/Linux,Unix,MacOSX,iOS, Android


    > Electrical Data


    Supply Voltage


    5.0V DC±10%


    Work Current


    4.0mA(Normal)


    X/Y position sensing resolution


    1000 points/inch (40 points/mm)


    X/Y position reporting


    Relative


    Tracking speed


    Maximum 1,016 m/sec


    EMC Standard


    EN55022(B)



    > Environmental Adaptability


    Operating temperature


    -10°C to +55°C


    Storage temperature


    -20°C to +65°C


    Operating RH


    10-95%


    Atmospheric pressure


    60-106Kpa.


    > Reliability


    CompliantStandard


    RoHS , CE and FCC


    Protection Level


    IP65(front panel)


    Static Release


    15 KV (front panel)


    Key Lifespan


    >10 million actuation


    MTBF


    >50000H


    MTTR


    <30min




    Stainless Steel Waterproof Touchpad Mouse 2 Metal Buttons , High Sensitivity
    Product Tags:

    rugged touchpad



    numeric touchpad


    Quality Stainless Steel Waterproof Touchpad Mouse 2 Metal Buttons , High Sensitivity for sale
