    Touchpad Mouse Industrial Pointing Device USB Interface With Customization Buttons

    Ask Lasest Price
    Brand Name : CNKHTECH
    Model Number : KH-6549-TP-USB
    Certification : CE/ROHS/FCC
    Price : Negotiation
    Payment Terms : T/T, Paypal, L/C
    Supply Ability : 5000pcs/month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    Touchpad Mouse Industrial Pointing Device USB Interface With Customization Buttons


    High Precision Pressure Sensing Touchpad Mouse With Customization Buttons Right And Left


    Product Description


    • High precision pressure sensing technology of touchpad, with 2 hidden buttons designed for right & left function keys.


    MAIN PRODUCT FEATURES -

    • Accurate orientation& Higher stability
    • Lighter touch and non-fatigue for a long time using
    • Lower power consumption
    • Waterproof, dustproof, wearable in a seal condition
    • Connector output function of 8 Pin 1.0 mm FFC line, and can be designed for customers for different output
    • 1 year warranty of products
    12345678
    VDDDATCLKRIGHTLEFTGNDSCRL UPSCRL ND

    TECHNICAL DATA SHEET AND SPECIFICATIONS -

    SPECIFICATION
    MechanicalDimension:(W x H): 65 x 49 mm (Front panel)
    Touchpad thickness1.3 mm PCB thickness inclusive of mylar layer
    Validated Touchpad(W x H):62.5 x 46.5 mm;
    Touchpad lifespan> 10 Mio times
    InterfacePS2 or USB connector is available
    ElectricalPower supply5V DC+/- 10%,
    Work current4.0 mA (normal)
    X/Y position sensing resolution:1000 points/inch (40 points/mm)
    X/Y position reporting:Relative
    Tracking speed:Maximum 1,016 m/sec
    EMC Standard:EN55022(B)
    EnvironmentalOperating temperature:-10°C to +60°C
    Storage temperature:- 40°C to + 65°C
    Operating RH:5%-95%
    Atmospheric pressure:60-106Kpa
    ReliabilityMTBF>50000H
    MTTR< 30min
    Touchpad Lifespan>10 million actuations
    OSOS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Win7,Unix, Mac OS9 / OSX
    Packing20pcs/EPE/inner box, 30boxes/ctn

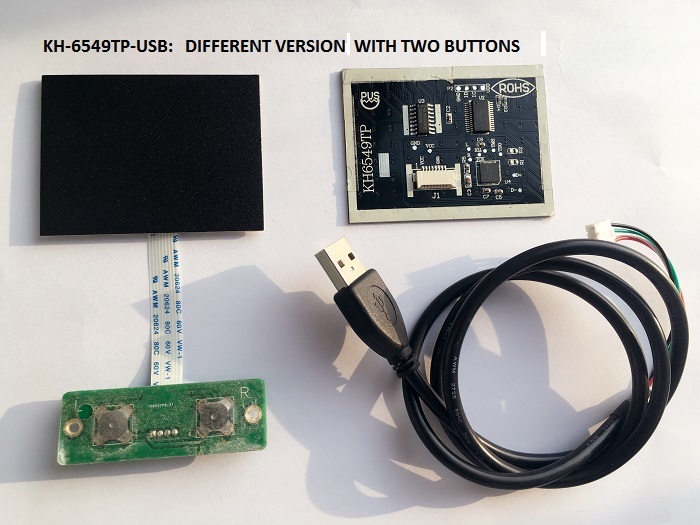

    PRODUCT DETAILS -
