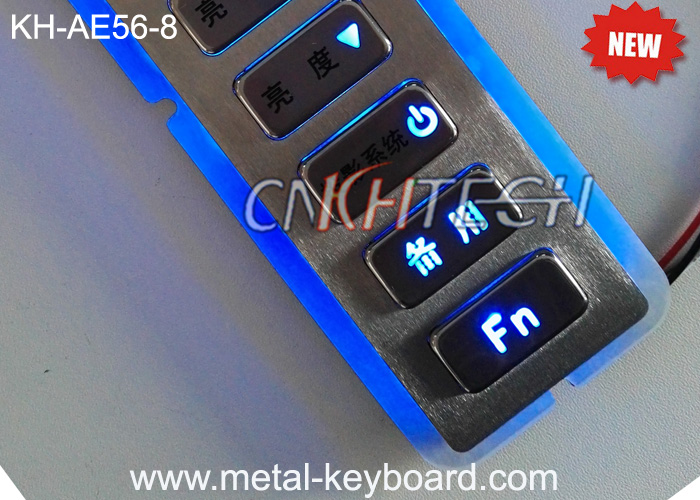

    Led Backlit Metal Keypad 8 Large Matrix Keys In Indoor Or Outdoor Conditions

    Ask Lasest Price
    Brand Name : CNKHTECH
    Model Number : KH-AE56-8
    Certification : CE/ROHS/FCC
    Price : Negotiation
    Payment Terms : T/T, Paypal, L/C
    Supply Ability : 5000pcs/month
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    Led Backlit Metal Keypad 8 Large Matrix Keys In Indoor Or Outdoor Conditions


    Led Backlit Metal Keypad 8 Large Matrix Keys In Indoor Or Outdoor Conditions


    ITEM No.: KH-A56-8


    Product Dimension(Front Panel): 44mmx162mm

    Product Dimension(Monting Panel): 56x174mm

    Net Weight: 0.25KG


    MAIN DESCRIPTION -

    1) PS/2, USB, Matrix interface are optional.

    2) 8 large LED individually-lit keys with customization designed dimensions of the keypad

    3) Panel mounting from the rear plate

    4) Connect with the power and can be used in indoor or outdoor conditions when it is dark.

    5) Fun and easy used for the keypad

    6) Customizable layout upon customer’s request, different languages are acceptable

    7) Protruding full travel(2.0mm)keys with laser-etched legend, excellent tactile feedback from clients for them

    8) Robust construction, high resistance against vandalism

    9) LED backlight color can be adjusted per customer's request


    TECHNICAL DATA SHEET AND SPECIFICATIONS -

    MaterialFront panel & Keys: Brushed stainless steel
    Electrical DataPower supply voltage: :5.0V DC±5%
    Current rating: appr. 30mA
    Interface: USB, PS2 or matrix
    EMC compliant. compliance with the council EMC directive 2004/108/EC
    EN55022: 2006+A2:2010
    EN55024: 1998+A1:2001+A2:200
    EMC compliant.
    Emission: EN 50081-1
    Immunity: EN 50082-1
    FCC
    CE,ROHS
    Environmental CharacteristicsOperating temperature: -30 C to + 65 C
    Storage temperature: - 40 C to + 75 C
    Operating Relative Humidity: 30% - 90%
    Atmospheric pressure: 60-106Kpa.
    Mechanical DataKey travel: 2.0mm
    Lifetime (cycles): Min 10, 000, 000 actuations
    Sealing protection: IP65 from the front
    Lifespan: more than 5 years
    Operation systemOS:

    DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX

    ColorKeycap: black, or silver
    Backlight:blue, green, red, white
    WeightN.W.: around 0.25kg

    PRODUCT DETAILS -
